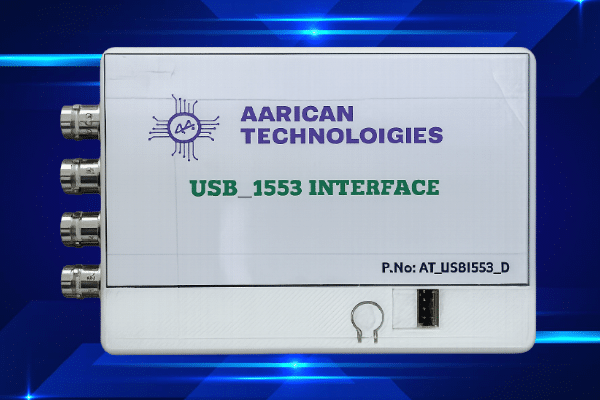

1553-USB Interface Module: Product Data sheet

The 1553-USB Interface Module provides a compact, rugged, and fully compliant solution for rigorous testing and monitoring of MIL- STD-1553 data bus communications. Designed for seamless integration, it connects to a host PC via a standard USB 2.0 interface, supporting one or two MIL-STD-1553 channels. This module offers comprehensive Bus Controller (BC), Remote Terminal (RT), and Bus Monitor (BM) functionalities, all managed through intuitive Windows/Linux GUI software, making it ideal for both laboratory and field environments. Its bus-powered design eliminates the need for external power sources, enhancing portability and ease of use in various application scenarios.
Product Features & Specifications
Tags Electrical Shaftless Mill Roll Stand, Shaftless Paper Reel Stand, Corrugated Carton Making Machine
Structure Electrical Shaftless Mill Roll Stand structure is double rotary shaft with four arms. Supports two paper mill rolls on both arms at the same time.
Brake System Round-plate type manual brake. Web tension can be adjusted at any time.
Safety Mechanism Arm clamp and rotary structure set with fixed torque clutch, ensures safe operation.
Paper Handling Each mill roll stand is provided with two sets of paper vehicle & track rail.
Max Paper Roll Width 1100 – 2200 mm
Max Paper Roll Diameter 1400 mm
Max Paper Roll Weight 2000 kg

MIL-STD-1553 Functional Features

Bus Controller (BC)

Automatic or user-defined scheduling
Programmable frame times, inter-message gaps, conditional retries, and branching
Continuous, loop N-times, or single-step run modes Start on software or external trigger
Aperiodic and one-shot message support
Sync-out on all or selected messages
Programmable BC timeout values

Bus Monitor (BM)

Capture all MIL-STD-1553 traffic or filter by RT/SA
Capture and time-tag discrete I/O events
Sequential record includes: Command, Status, Data
Words, Time Tag, Errors, Bus ID, and Response Times
Efficient DMA monitor pipe for high-speed data transfer to host

Remote Terminal (RT)

Simulate up to 32 RTs simultaneously
Configurable MIL-STD-1553A or 1553B response timing
Programmable response time and status word bits Automatic Busy Bit option
Supports all MIL-STD-1553B mode codes Selectable mode-code sub-address
Per-RT broadcast enable control.
RT 31 configurable as broadcast or valid RT
“Shadow Monitor” RT mode

Bus Monitor (BM)

Polling or interrupt-driven operation
Configurable event log with programmable filters
Event generation and interrupts based on messages, BC schedules, or buffer status

Channel

Channel Specifications
Channels 1 or 2 MIL-STD-1553 channels
Bus Redundancy Dual redundant (Bus A & Bus B)
Supported Modes BC, RT (up to 32 RTs), Bus Monitor
Multi-Function Operation Simultaneous BC + RT + BM
Coupling Transformer- or Direct-Coupled
Termination Jumper-selectable direct-coupled termination

Mechanicals Environmental

Dimensions 120 mm × 90 mm
Weight < 200 g (typical)
Power Source USB 2.0 bus-powered
Operating Temperature 0 °C – 50 °C (typical lab unit)
Storage Temperature –20 °C – 70 °C
Enclosure Rugged aluminium (optional bare board version)

Software Support & Applications

Windows / Linux GUI Windows / Linux GUI
Driver Support USB 2.0 driver for Windows 10 / 11 and Linux kernels g 4.x
API / SDK (optional) Provides C/C++ API for integration with user test software
Logging & Analysis Tools Message view, bus statistics, time-tag analysis, and export features
MIL-STD-1553 bus testing and simulation Avionics integration labs
ATE and production testing On-board data bus
validation Portable field service tool

Ordering Information

USB1553-S 1 Single-Channel MIL-STD-1553 USB Interface
USB1553-D 2 Dual-Channel MIL-STD-1553 USB Interface
USB1553-OEM 1 or 2 Board-only version for embedded applications

Compliances Certifications

MIL-STD-1553A/B Protocol Compliant
FCC, CE, and RoHS Certified
Manufactured under ISO 9001:2015 QMS
